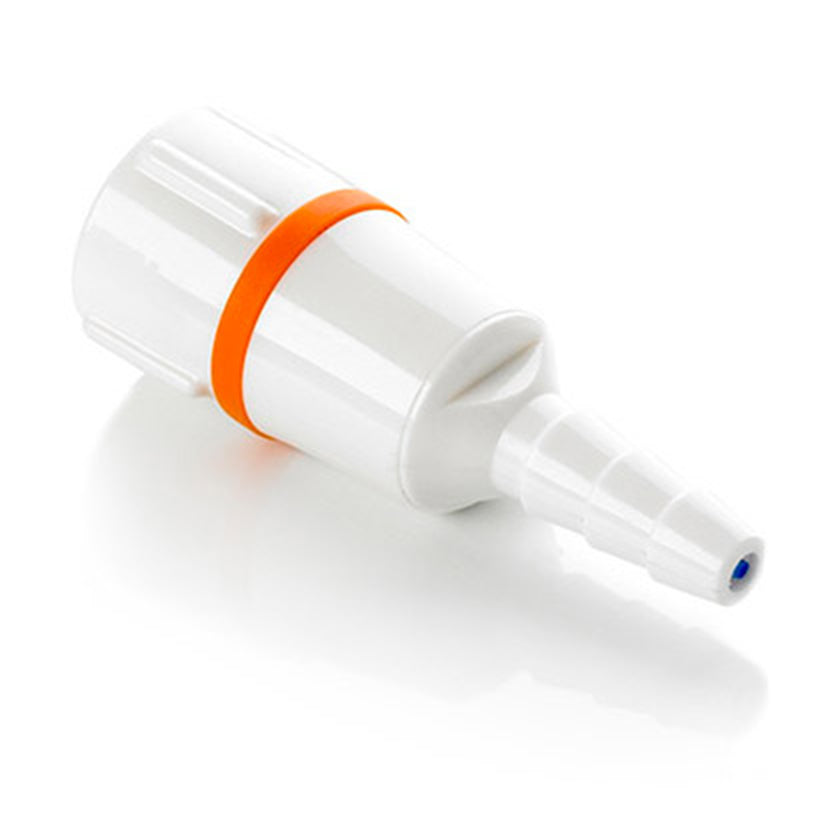

Firesafe Nozzle Nipple Nut-and-Stem 'Christmas Tree' Adapter for Oxygen Tubing & Concentrators

$18.95

Contact Us For Information & Alternatives

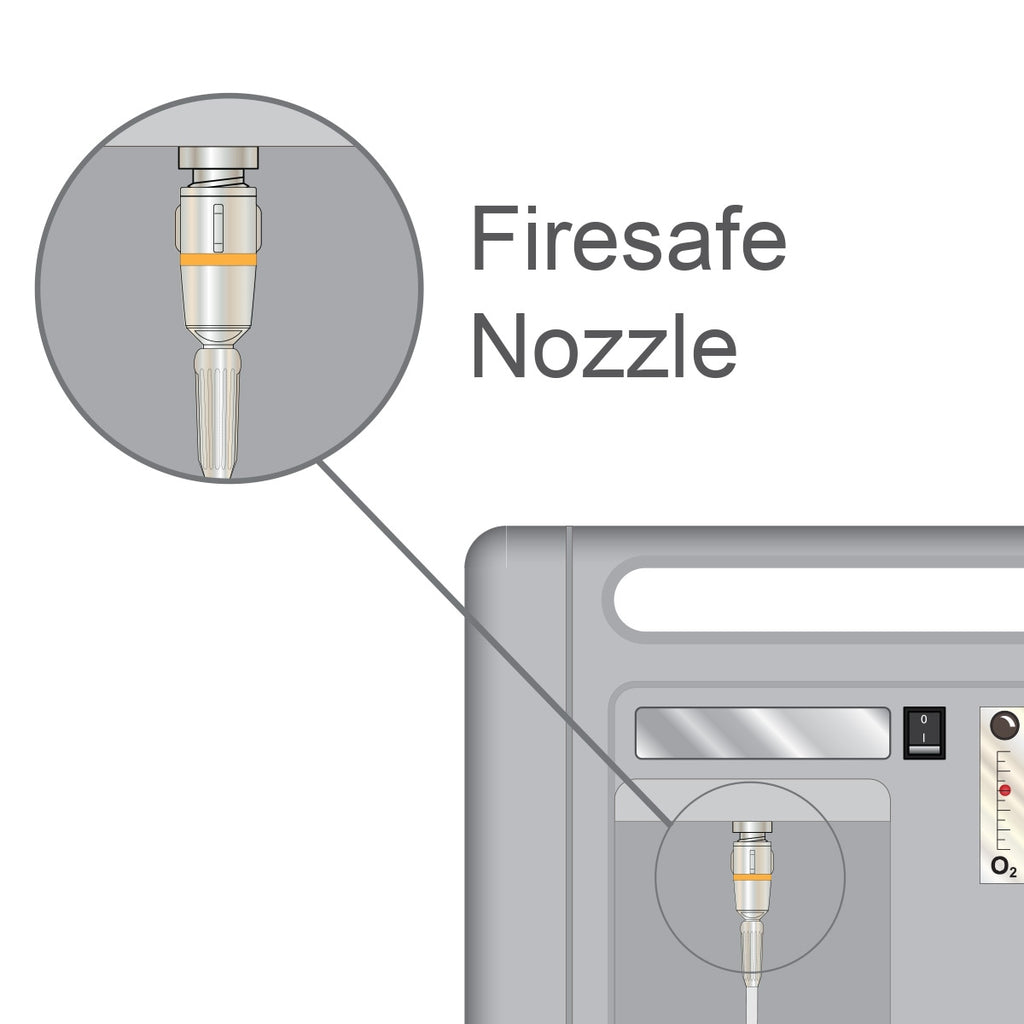

The Firesafe Nozzle is a thermal fuse designed to extinguish an oxygen delivery tube fire and stop the flow of oxygen if the tube is accidentally ignited. The Firesafe Nozzle is used in place of the Nipple Nut-and-Stem "Christmas Tree" Adapter found on most standard stationery oxygen concentrators, flowmeters, cylinders and related products.

The Firesafe Nozzle is essentially a thermal fuse, comprising a spring loaded valve held open by a T-bar. The T-bar is situated downstream of the valve and supported by a fusible ledge of material. The Firesafe valve is actuated when the fuisble ledge softens as a result of heat from an approaching fire in the oxygen delivery tubing. Upon actuation the valve probe moves forward and an o-ring seals the valve, thereby isolating the oxygen supply from the fire.

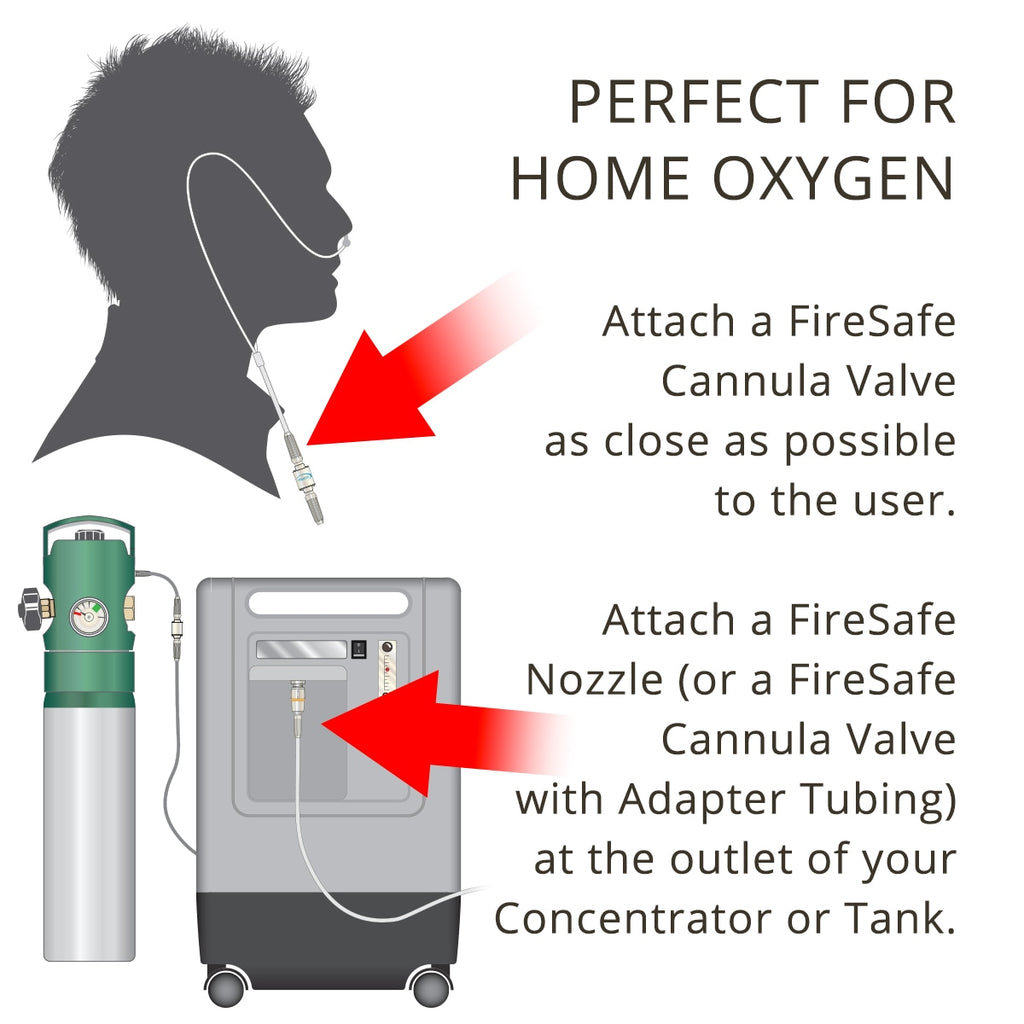

It is recommended that at least two Firesafe devices are fitted to each oxygen delivery circuit. The first, either a Firesafe Nozzle or Firesafe Cannula Valve depending on your oxygen setup, should be positioned close to the source of supply; and the second, a Firesafe Cannula Valve, should be positioned close to the patient. The Firesafe Cannula Valve provides no protection if a fire burns through the oxygen delivery tubing upstream of the device.



The Firesafe Nozzle is maintenance free and has an intended life of 8 years. Dispose of any Firesafe Nozzle 8 years after the manufacturing date engraved on the device. Once actuated, the Firesafe Nozzle cannot be reset and must be discarded.




Warranty
 Manufacturer's Warranty

Loyalty Rewards
Earn Points & Save Money

In Stock
Ready to Ship

HSA FSA Eligible
Save on Healthcare Costs
Product Information
Manufacturer Sunset Healthcare BPR
Part Number(s) RES010FND
HCPCS Code E1399
GTIN / UPC Code
Compatibility This Firesafe Nozzle adapter has a universal fitting compatible with a wide range of stationary and home concentrators including those from Respironics, Airsep, Invacare, Medline, Drive Healthcare, etc. It is not needed for most portable or travel oxygen concentrators.
Physical Specifications
Materials Latex Free
